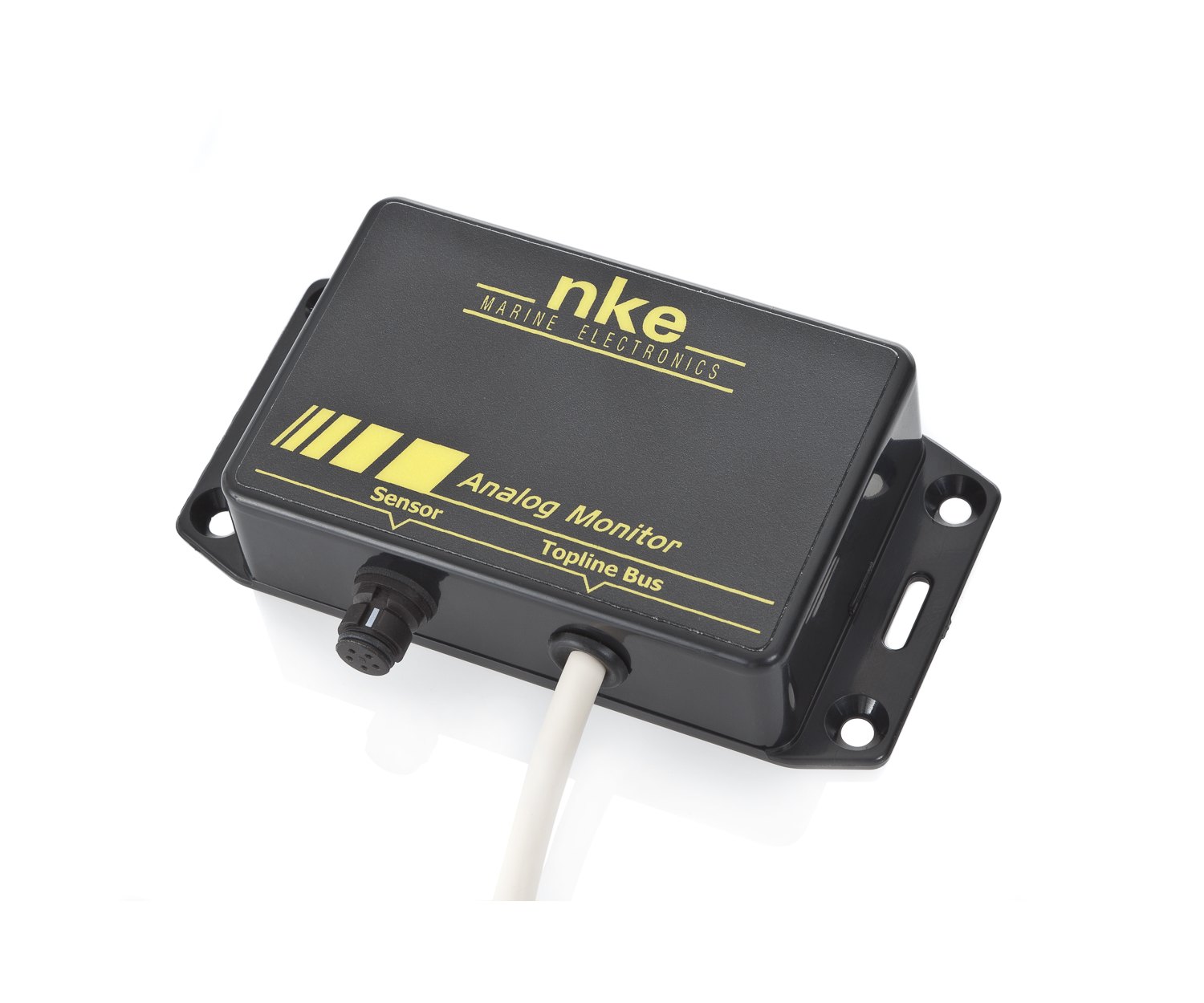

Analog Monitor Interface


Customize Your setup : 1 sensor  = 1 channel on the bus.

Create and publish on the Bus Topline Bus data from any third sensor type analog voltage (ex mast angle sensor, keel angle, tank gauges …). Wide range of sensors can be used : keel or mast angle, inductive or analog sensors.

The analog Monitor enables to create one channel per interface with a custom title. Then these channels can be displayed on multifunctions.


  • Dimensions : 110 X 56.4 X 26 mm
  • Voltage : 9 to 32 Volt DC
  • Consumption :< 20 mA
  • 1 analog enter 0 to 3.3 V or 0 to 10 V
  • Ref. 90-60-539

manuel_picto_gris_03 USER GUIDE

fr uk it es

Find all the manuals in the User guides section
