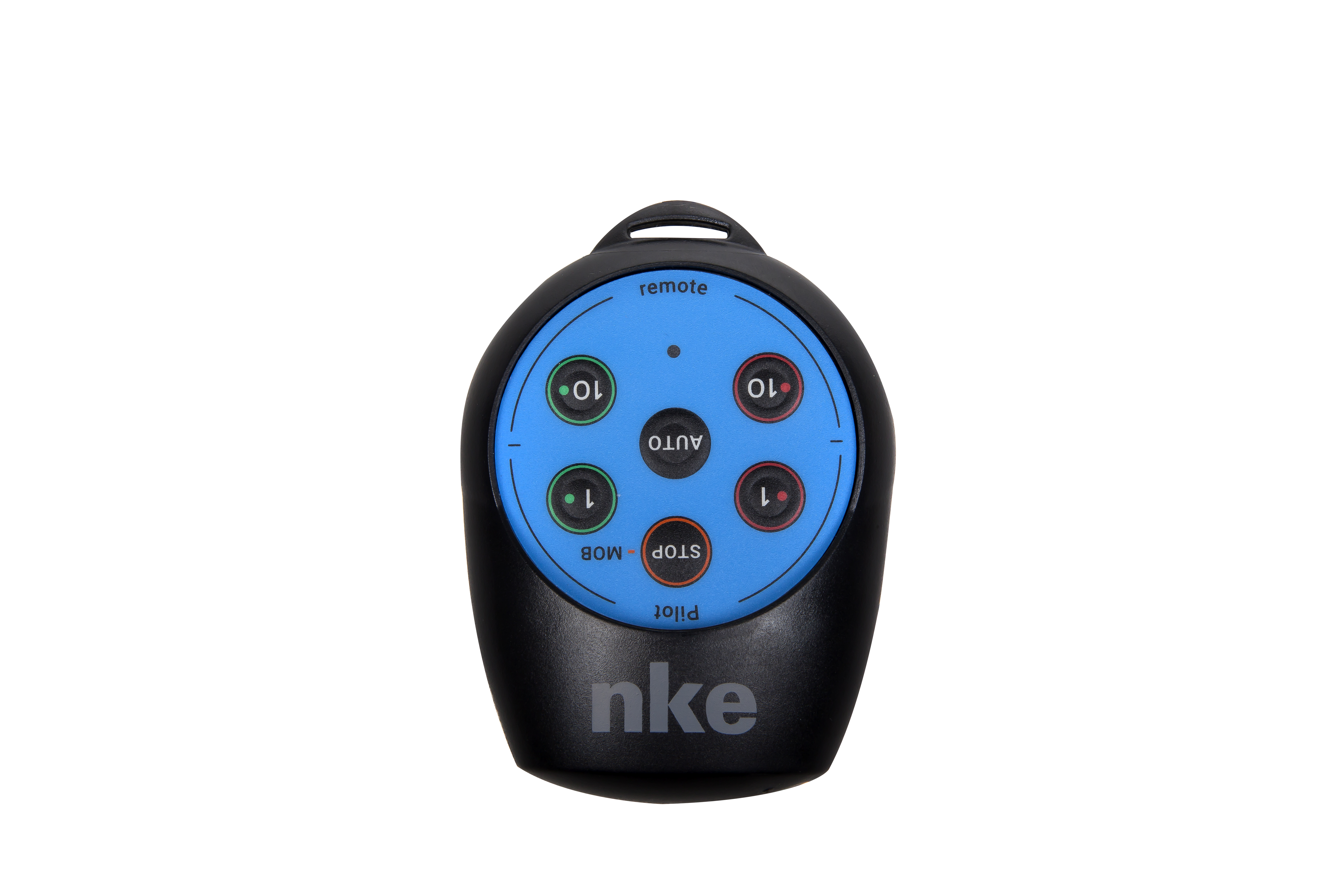

Gyropilot remote control / transmitter


Wireless control of the pilot with automatic man-over-board detection.

This remote control is light and user friendly. Designed for the GyropilotGraphic, it allows freedom to move around safely. Whether you stand near the helm, on deck, at the mast base or on the bow, you can alter the heading, tack, gybe, switch pilot mode, or just toggle the pages on the display, all by the press of a button. The receiver installed on your nke bus will forward the command to the Topline bus.


  • Power supply: lithium battery 3.6V. Battery life time ranges from 1 to 3 years. (Return the unit to your dealer for battery replacement)
  • Waterproof protection: IP68 (to immersion).
  • Weight: 65grs.
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -20°C to +60°C
  • Ref. 90-60-247

fonctionnalite_picto_03 FUNCTIONS

In a Man Over Board situation, it triggers an audible alarm to warn the crew and display bearing and distance to the Man Over Board on all multifunction displays. If the pilot is engaged the following actions are automatic:

  • In Crew Mode : no action on the Gyropilot
  • In Solo Mode :
    • boat turns into the wind if your instrument system includes a wind sensor
    • rudder turns to the end stop on the opposite side if your instrument system does not include a wind sensor

In addition to this transmitter/remote control, you can have up to 8 M.O.B. Rescue Aids allowing one for each member of your family / crew. They all trigger alarms in the same way.

The transmitters are continuously sending their ID code to the system. In case of radio signal break, you are immediately warned. No need to jump in the water to check if the system works!

manuel_picto_gris_03 USER GUIDE

fr uk it es

Find all the manuals in the User guides section


  • Gyropilot remote control / transmitter = 1 Gyropilot remote control + 1 receiver [ref. 90-60-257]
  • Radio receiver [ref. 90-60-250]
