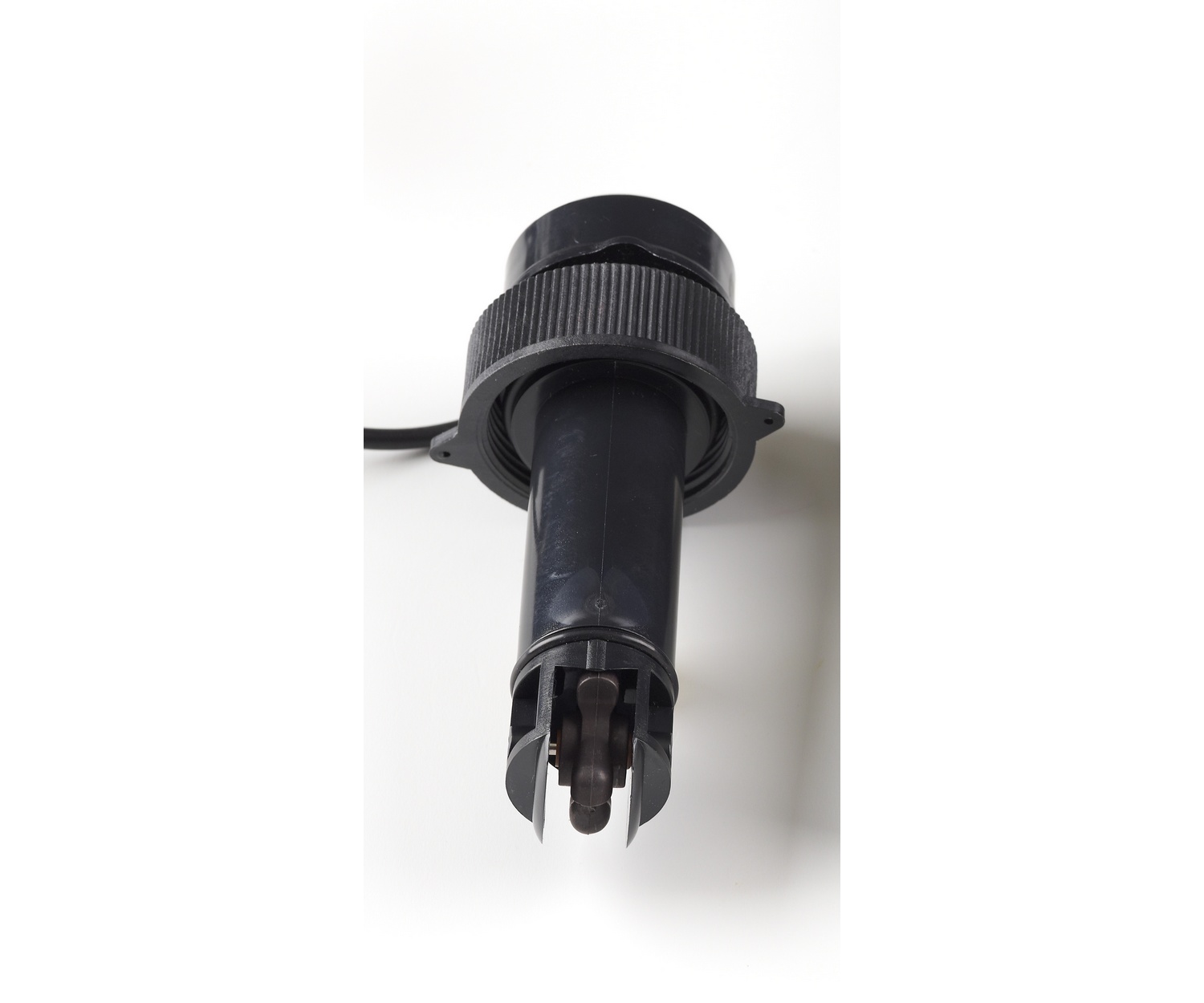

Paddle Wheel speed sensor


To measure surface boat speed and temperature.

The sensor is positioned out of the boundary layer for accurate measurements. It can be removed from the  thru-hull housing for maintenance.


  • Waterproof protection:IP67
  • 6 metre cable with connector
  • Weight: 700 gr
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -20°C to +60°C
  • Speed range: 0 to 50 knots
  • Temperature range: 0°C to +50°C
  • Thru-hull housing internal diameter: 31 mm and external diameter: 50 mm (ref. 90-60-221)
  • Ref. 90-60-457 (paddle wheel speed sensor with thru hull)
  • Ref. 90-60-463 (paddle wheel speed sensor without thru hull)

manuel_picto_gris_03 USER GUIDE

fr uk it es

Find all the manuals in the User guides section
