3D Sensor

DESCRIPTION

[90-60-374]

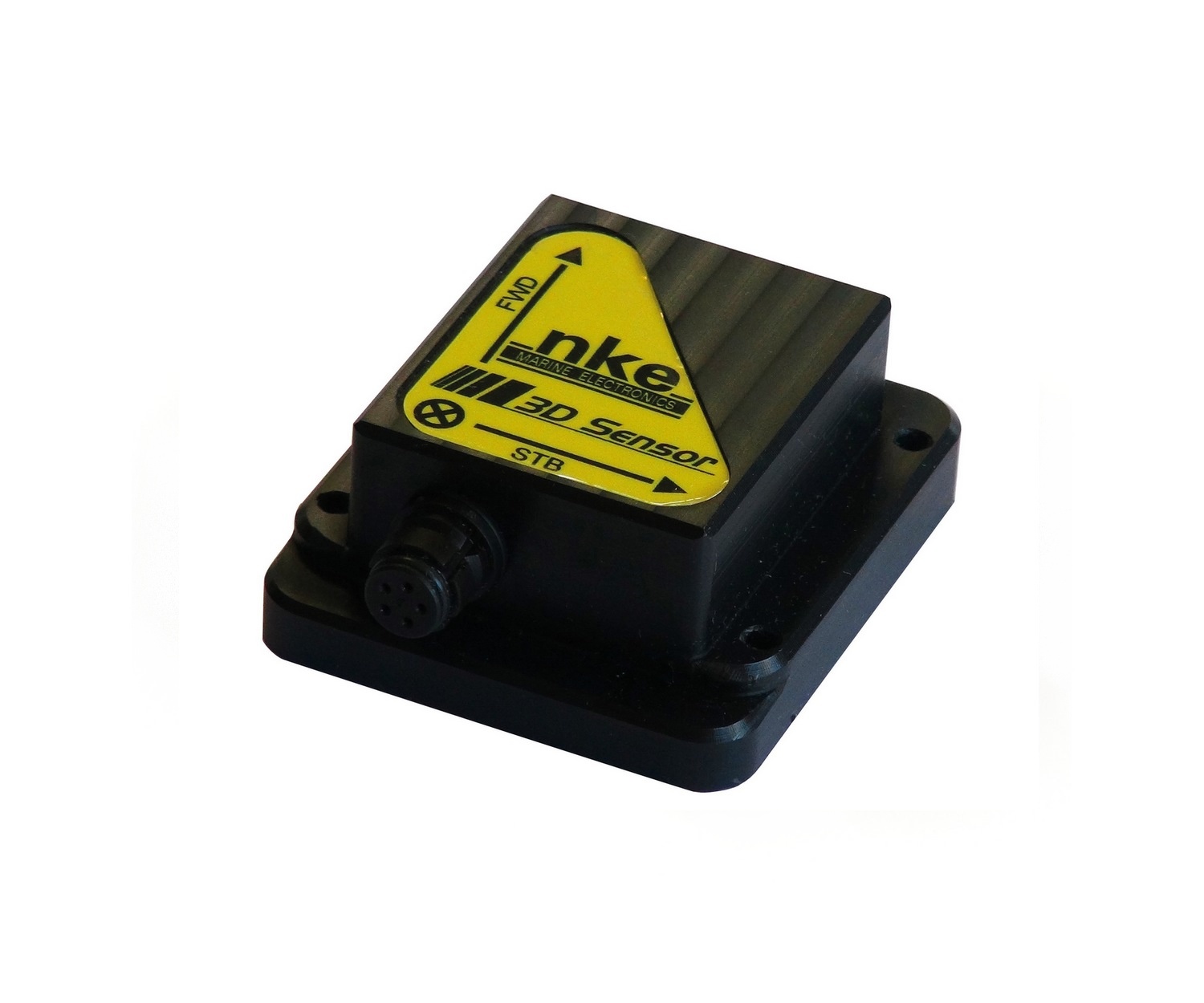

The 3D Sensor is a highly accurate Inertial measurement unit that allows the boat’s movement and orientation to be measured. It provides accurate heading, roll and pitch, acceleration and turn rate. It is connected to the Processor HR or Processor Regatta.

test_03 CHARACTERISTICS

  • Power supply: 4.5 to 15VDC
  • Consumption: 360mW
  • Angle resolution: 0,05°
  • Magnetic heading accuracy: <1°
  • Roll and pitch accuracy: <0,5°
  • Dynamic accuracy: 2° RMS
  • Waterproof protection: IP67
  • Weight: 200 grs
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -20°C to +60°C
  • Dimensions 110 x 56 x 39 mm
  • Data output : RS232
  • 3 accelerations – 3 movement measured (roll, pitch, yaw)
  • 3 turn speeds – Temperatures – 3 magnetic fields

fonctionnalite_picto_03 FUNCTIONS

12 data fields are processed continuously in real time:

  • 3 for acceleration
  • 3 for turn rate
  • 3 for magnetic field
  • 3 movements measured (spatial orientation: pitch roll and turn)

manuel_picto_gris_03 USER GUIDE

fr uk it es

Find all the manuals in the User guides section
